ʻO ka pōʻalo hoʻoheheʻe pololei no nā mīkini hoʻoheheʻe palaki

Hoʻohana mau ʻia nā ʻano hoʻohālike i hoʻohana pinepine ʻia:

Ka nui o ka Injection (g)	Uku Anawaena X Length (mm)	Barela Anawaena X Length (mm)	Ka nui o ka Injection (g)	Uku Anawaena X Length (mm)	Barela Anawaena X Length (mm)
30-90	Φ30x900	Φ85x860	80-125	Φ75x1825	Φ170x1725
60-125	Φ35x910	Φ85x860	100-150	Φ80x2000	Φ180x1805
100-150	Φ38x935	Φ95x900	125-200	Φ85x2300	Φ190x1900
125-160	Φ40x980	Φ95x910	200-300	Φ90x2700	Φ210x2000
125-300	Φ42x1030	Φ105X1110	250-500	Φ100x2600	Φ230x2405
250-400	Φ45x1210	Φ115x1165	300-600	Φ110x2600	Φ256x2590
300-500	Φ50x1300	Φ125x1260	400-1000	Φ120x2800	Φ256x2800
450-600	Φ55x1335	Φ130x1320	600-800	Φ130x3010	Φ256x2970
500-700	Φ56x1350	Φ130x1350	800-1000	Φ145x3010	Φ256x3200
500-700	Φ60x1380	Φ140x1350	1000-1500	Φ160x3500	Φ270x3200
650-800	Φ65x1415	Φ150x1420	1300-2500	Φ170x3415	Φ317X3380
700-1000	Φ70x1790	Φ160x1685

NanhaiyaHana ʻia nā wili hoʻoheheʻe ʻia me 38CrMoALA kila kila, mālama ʻia i ka wela, kūpono no ka hana ʻana i nā plastic non-corrosive e like me PE a me PP, me ke ola lawelawe ma kahi o 10,000-20,000 mau hola. Ma hope o ka hoʻopiʻi ʻana a me ka hoʻoulu ʻana, hoʻonui ʻia ka pale ʻana o ka shear e 50%, no ka hoʻomaʻamaʻa ʻana i nā plastic i hoʻoikaika ʻia i loko o ka fiber aniani (≤30%) (e like me PA + aniani fiber). Hoʻopili mākou i nā wili hoʻoheheʻe injection, e hana ana i ka nitriding gas ma 500-560 ℃ e hana i kahi papa nitrided me ka mānoanoa o 0.5-0.8mm (ka paʻakikī 950-1050HV), hiki ke hoʻomaikaʻi i ka pale ʻana i ka lole e 30% -40%.

Hiki ke hoʻohana ʻia nā ʻūlū hoʻoheheʻe injection no:PE, PP, PS, ABS. ʻO nā noi e komo: PVC paipu paipu, plastik puka a me ka puka makani mea; PA automotive engine peripheral wahi; ʻO nā mea paʻa kukui LED PBT a me nā mea hoʻohui uila; a me ka fiber aniani i hoʻoikaika ʻia i ka PA a me ka carbon fiber i hoʻoikaika ʻia i nā huahana PC.

View as

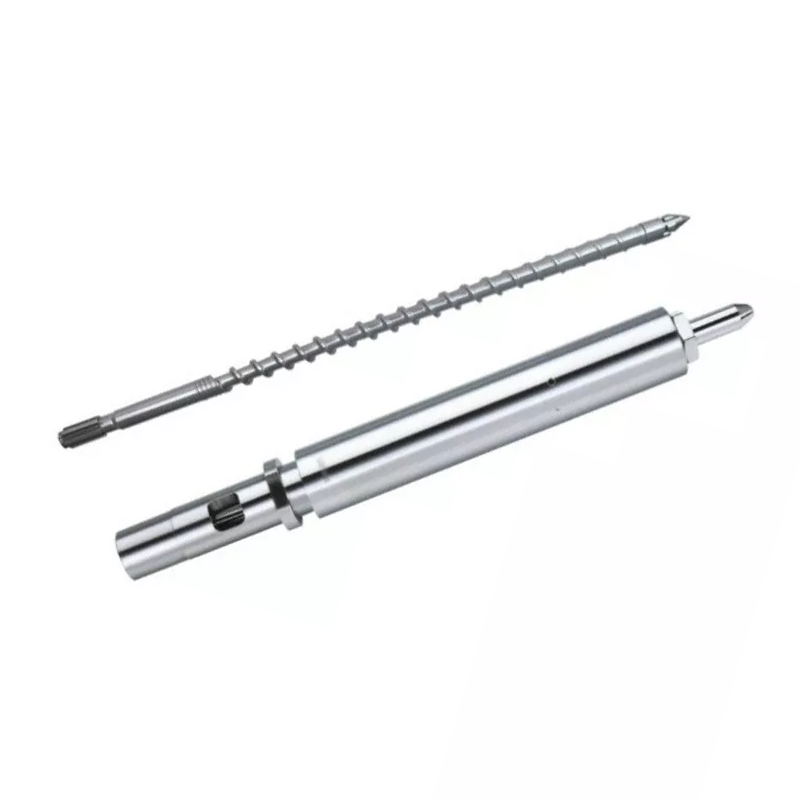

Mutant Injection Molding Screw

ʻO Zhoushan Nanhaiya Plastic Machinery Co., Ltd. ʻo ia kekahi o nā mea hana ʻoihana mua loa ma Kina e ʻike nui ana i ka Mutant Injection Molding Screw a me nā barela no nā mīkini hoʻoheheʻe sol-gel. Me ka ʻoi aku o nā makahiki he ʻumi o ka ʻike i nā mīkini plastics, ua loaʻa iā mākou ka hilinaʻi o nā mea kūʻai aku ma ka honua holoʻokoʻa i kā mākou huahana kiʻekiʻe. ʻO kā mākou kumu kūʻai kiʻekiʻe no kā mākou mutated injection molding screws e mālama i nā mākeke like ʻole. Manaʻo mākou i ka lilo ʻana i hoa pili lōʻihi ma Kina.

Nānā hou aku >> E hoʻouna i ka nīnau >>

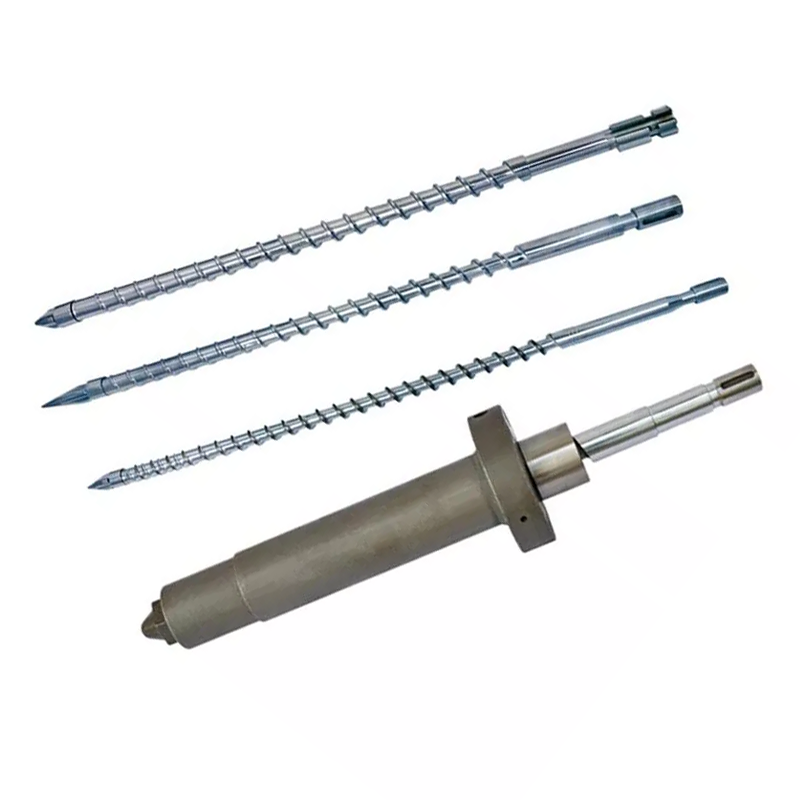

Holoi Hoʻoheheʻe Māmā

ʻO Zhoushan Nanhaiya Plastic Machinery Co., Ltd. ʻo ia kekahi o nā mea hana ʻoihana mua loa ma Kina e ʻike nui ana i nā wili a me nā barela no nā mīkini sol-gel. Me ka ʻoi aku o nā makahiki he ʻumi o ka ʻike i nā mīkini plastics, ua loaʻa iā mākou ka hilinaʻi o nā mea kūʻai aku ma ka honua holoʻokoʻa i kā mākou huahana kiʻekiʻe. ʻO kā mākou kumu kūʻai kiʻekiʻe no kā mākou hoʻoheheʻe hoʻoheheʻe lohi e mālama i nā mākeke like ʻole. Manaʻo mākou i ka lilo ʻana i hoa pili lōʻihi ma Kina.

Nānā hou aku >> E hoʻouna i ka nīnau >>

ʻO ka pōʻai hoʻoheheʻe mai Nanhaiya e hāʻawi i nā mea hoʻonā kūlana kiʻekiʻe a paʻa me ka lawe wikiwiki a me nā koho hoʻolālā maʻamau. E kelepona mai iā mākou i kēia lā no ke kumu kūʻai hoʻokūkū.
