What is a conical twin screw barrel?

It is a tapered twin-bore extrusion component in which two conical screws rotate inside a matching conical barrel. The taper compresses and plasticizes material over a short length, making the conical screw barrel ideal for PVC pipe, profile, sheet and WPC extrusion.

What materials is it best used for?

Rigid PVC (pipe, profile, board and sheet), wood-plastic composite, PE-based profiles and resin tile, plus PVC pelletizing. It handles low-bulk-density dry-blend powders especially well thanks to its large feed-end intake.

How is it different from a parallel twin screw barrel?

A conical barrel tapers and builds high compression with gentle shear, suiting direct PVC/WPC extrusion. A parallel twin screw barrel keeps a constant diameter and higher shear, which suits compounding, masterbatch and very high-filler formulations.

What is the typical clearance between screw and barrel?

Clearance is the small gap between the flight tip and the bore wall. It is set tight and accurate on a new part; as it opens up from wear, output and pressure drop. Measuring it periodically is the clearest way to track barrel wear.

How do I install a conical twin screw barrel?

Power down and lock out, clean the mating faces, mount and align so the screws turn freely, wire each heater zone and thermocouple correctly, then bring the barrel up to temperature slowly and soak it before starting the screws.

What causes wear in conical twin screw barrels?

Mainly abrasive fillers such as calcium carbonate, wood fiber and glass, made worse by corrosion from PVC processing, poor maintenance and under-specified hardness. A deeper bimetallic or tungsten-carbide layer resists all three far better.

How often should the barrel be inspected or replaced?

Do visual and purge checks monthly and measure clearance quarterly. Replacement timing depends on filler load and run hours — track the wear trend rather than waiting for a failure, and rebuild or replace once clearance moves past spec.

How do I choose the right size for my extrusion line?

Match the diameter ratio and length to your extruder model and target output, then pick a surface treatment based on how abrasive your formulation is. Send a drawing or a sample with key dimensions so the barrel is an exact fit, not an approximation.

Conical Twin Screw Barrel: Ke alakaʻi piha i nā kikoʻī, nā noi a me ke koho ʻana

2026-08-05 0 Waiho mai ia'u i memo

Na kaHui Hana Hana Nanhaiya— Screw & Barrel Engineering, Zhoushan · Nānā ʻia no ka pololei o ka hale hana · ~ 10 min heluhelu

Pane wikiwiki

ʻO ka pahu māhoe māhoe conical he mea hoʻoheheʻe ʻia, māhoe lua i hoʻololi ʻia i loko o ka pahu conical like. Hāʻawi ka tapered geometry i ka hānai ikaika a me ke kaomi kiʻekiʻe i ka lōʻihi pōkole, ʻo ia ke kumu o kawili māhoe conical a me ka pahuʻO ia ke koho maʻamau no ka paipu PVC, profile, sheet a me WPC extrusion.

Inā holo ʻoe i kahi laina PVC a i ʻole lāʻau-pulu, ʻo kapahu pahu māhoe conicalʻo ia kekahi o nā ʻāpana e hoʻoholo pololei i kāu huahana, ka maikaʻi heheʻe a me ke kumukūʻai holo. E koho i ka nui hewa, mea a i ʻole ka ʻae a uku ʻoe iā ia ma ka ʻaʻahu, ka ʻōpala a me ka wā hoʻomaha. Hoʻopili kēia alakaʻi i ka hana ʻana o ka pahu conical screw, nā kikoʻī e pili ana i ka wā e kūʻai ai ʻoe, pehea ka ʻokoʻa mai kahibarela māhoe māhoe like, a pehea e koho ai, hoʻokomo a mālama i hoʻokahi - i kākau ʻia mai ka manaʻo o kahi hale hana e mīkini i kēia mau ʻāpana i kēlā me kēia lā.

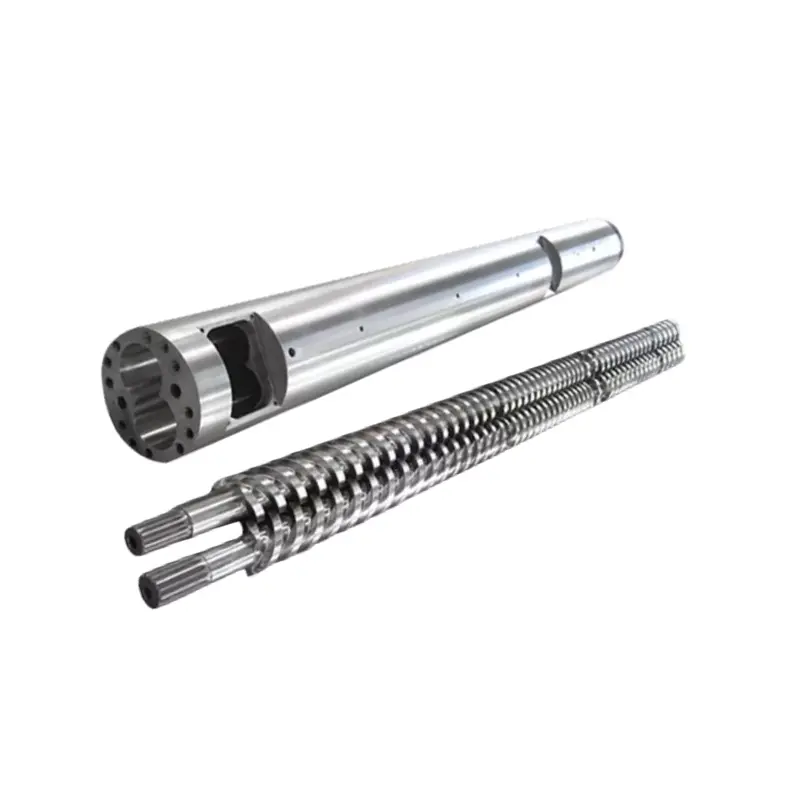

Conical twin screw barrel manufactured by Nanhaiya — ʻO kahi māhoe māhoe conical a me ka pahu pahu - hāʻawi nā pahu i hoʻopaʻa ʻia i ka hoʻoemi pōkole lōʻihi kūpono no ka PVC wela.

Pehea ka hana ʻana o ka pahu pahu māhoe conical

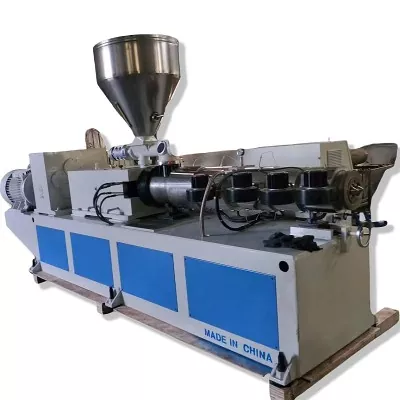

Ma kahimāhoe conical screw extruder, noho ʻelua ʻaoʻao ma kahi ʻaoʻao ma kahi kihi liʻiliʻi, ākea ma ka hopena hānai a haiki i ka hopena make. Hoʻopili ka pahu i ka liʻiliʻi e kūlike. Ke neʻe nei ka mea maka mai ka ʻāpana hānai anana nui a i ka ʻāpana anana anana liʻiliʻi, hoʻopaʻa a hoʻopaʻa ʻia ka nui o ka emi ʻana i ka wā e lawe a hui pū nā mokulele intermeshing. Ma muli o ka hoʻohuli ʻana o nā wili ʻelua a pili pono, ʻo ka māhoe conical wili a me ka barela e like me ka pauma hoʻoneʻe maikaʻi - hoʻopuka paʻa i ka ʻoki haʻahaʻa haʻahaʻa, e pale ana i nā polymers wela e like me PVC.

Hoʻokaʻawale ke kaʻina hana i ʻekolu mau pae:

Hānai a lawe- ʻO ke anawaena hoʻopau hānai nui e hāʻawi i ka nui o ka lawe ʻana, no laila ua huki ʻia ka hui ʻana o ka pauka a me nā mea haʻahaʻa haʻahaʻa (e like me ka PVC dry-blend) me ka hilinaʻi ʻole.
Hoʻopili a me ka plasticizing- Hoʻemi ka taper i ka leo o ke kahawai ma ka lōʻihi, hoʻopaʻa i ka mea, hoʻokuʻu i ka ea a hoʻoheheʻe ʻia ma o ka wela a me ka hana mechanical.
Ka ana a me ka hoʻokuʻu ʻana- kūkulu ka ʻāpana ana haiki i ke kaomi paʻa a hoʻokuʻu i ka hoʻoheheʻe like ʻole a homogeneous ma o ka make ma kahi kaohi.

ʻOi aku ka hana o ka barela ma mua o ka mālama ʻana i nā wili. Lawe ʻo ia i nā ʻāpana wela a me nā mea hoʻoluʻu e paʻa i kēlā me kēia pae i ka mahana kūpono. Hoʻohana ʻo Nanhaiya barela i kahi hoʻolālā hoʻomehana a me ka hoʻolālā hoʻoluʻu - maʻamau ka hānai ʻana, ka hoʻopiʻi ʻana a me nā ʻāpana homogenization - me ka hoʻokuʻu ʻana i ka momi no ka huki ʻana i ka makū a me nā volatiles mai ka heheʻe, he mea nui ia no nā pūhui piha a hygroscopic.

Nā kikoʻī koʻikoʻi e nānā ma mua o kou kūʻai ʻana

Hiki ke nānā like nā pahu conical ʻelua a ʻokoʻa loa ka hana. ʻO kēia nā kikoʻī e hoʻoholo ai i ke kūpono, ka hoʻopuka a me ka hoʻohana ʻana i ke ola - nā helu āu e hōʻoia ai i kēlā me kēia ʻōlelo.

Mea kikoʻī	He aha ka manaʻo	No ke aha ia mea
Lakiō anawaena	ʻO ke anawaena hānai-hope / make-end, e.g. 45/90, 50/105, 55/110, 65/132, 80/156, 92/188 mm	Hoʻonohonoho i ka papa mīkini a me ka pūʻulu hoʻopuka - pono e hoʻohālikelike pono i kāu kumu hoʻohālike
Lakiō L/D	ʻO ka lōʻihi o ka hana pono ʻana me ke anawaena	ʻOi aku ka lōʻihi o ka lōʻihi = ʻoi aku ka manawa noho no ka hui piha a me ka degassing
Papa waiwai	38CrMoAlA nitrided kila, W6Mo5Cr4V2, HIP pauda kila, a bimetallic	Hoʻokuʻu pololei i ke ola a me ka pale ʻana i ka corrosion e kūʻē i nā pūhui piha/PVC
Lapaʻau ʻili a me ka paʻakikī	Nitriding, chrome plating, bimetallic alloy or tungsten-carbide spray	Hoʻopili ʻo Nanhaiya i kahi ʻāpana tungsten i hoʻohui ʻia e hiki ai62 HRCi loko o ka pahu me kahi 58 HRC maʻamau
ʻO ka hohonu o ka papa huila	ʻO ka mānoanoa o ka ʻili o loko	ʻO ka papa bimetallic o Nanhaiya he 2.5–3 mm — ʻo ka papa hohonu ka manaʻo o ka puka makani lawelawe lōʻihi.
Hoʻomaʻemaʻe i ka pōkole/barela	ʻO ka ʻokoʻa ma waena o ka piko lele a me ka paia hū	Nui loa = poho puʻe a haʻahaʻa ka puka; ʻO kahi ākea paʻa, pololei e mālama i ka hana kiʻekiʻe
Hoʻomanawanui / pololei	Mīkini pololei o ka ʻāpana i hoʻopau ʻia	Hoʻopaʻa ʻo Nanhaiya i nā pahu māhoe conical i ±0.0005 mm no ka hoʻopaʻa paʻa a hiki ke hana hou
kaha puka (kg/h)	Hoʻopuka helu ʻia no ka nui	ʻO ka helu o ka mea kūʻai aku ma lalo - e hoʻohālikelike me ka wikiwiki o kāu laina a me kāu huahana

Nota ʻoihana maʻamau:ʻO ka nui conical e like me 45/90 a i ʻole 65/132 (feed/die diameter in mm) he mea maʻamau ma waena o nā mīkini conical SJZ-type, no laila hiki ke hoʻohālikelike ʻia kahi pahu i kuhikuhi ʻia ma kēia ala me kahi extruder e kū nei. E hōʻoia mau i ke kaha kiʻi a i ʻole ka laʻana ma mua o ke kauoha ʻana. Hiki iā ʻoe ke ʻike i nā nui maʻamau ma kā mākoupahu pahu māhoe conicalʻaoʻao.

Conical vs barela māhoe māhoe like

ʻO ka nīnau maʻamau i nīnau ʻia e nā mea kūʻai aku inā makemake lākou i kahi conical a i ʻole abarela māhoe māhoe like. He māhoe māhoe ʻelua, ʻelua intermesh - akā kūpono ke geometry i nā hana like ʻole. I ka pōkole: ʻoi aku ka conical i ka PVC / WPC extrusion pololei o ka paipu, profile a me ka papa; ʻoi aku ka ikaika o ka parallel no ka hoʻohui ʻana, masterbatch a me nā hoʻopihapiha hoʻopihapiha kiʻekiʻe loa.

Kumukumu	Barela māhoe māhoe conical	Barela māhoe māhoe like
Hanai hana	Wehe ʻai nui - ʻoi aku ka maikaʻi o ka ʻai ʻana no ka pauka haʻahaʻa haʻahaʻa	ʻOi aku ka ʻai like ʻole no ka hoʻohuihui ʻana a me ka hānai pellet
Hoʻopiʻi	Hoʻopili kiʻekiʻe i kūkulu ʻia i loko o ka geometric tapered	ʻOi aku ka hoʻoemi mau ʻana ma ke anawaena paʻa
Wela / shear	ʻOi aku ka maʻalahi a me ka hoʻoponopono ʻana - maikaʻi no ka PVC wela	ʻO ka ʻāhi kiʻekiʻe - ʻoi aku ka maikaʻi no ka hui ʻana a me ka hoʻopuehu
Hoʻohana maʻamau	PVC paipu, profile, pepa, WPC, resin tile	Masterbatch, hoʻohuihui, kiʻekiʻe-CaCO₃ a me ka hana piha aniani
Ka malama ana	Pono ka nānā pono ʻana o ka ʻaʻahu a me ka hoʻomaʻemaʻe ʻana i ka taper	ʻO ka maʻalahi o ka hoʻohālikelike geometry a me ka hoʻololi ʻana i nā mea

He lula kūpono: inā kāu huahana hopeʻo iaka extrudate (he paipu a i ʻole ka papa pololei mai ka make), ʻo ka pahu pahu māhoe conical ka mea hana pono. Inā ʻoe e hana ana i nā pellets a i ʻole ka hoʻopuehu ʻana i kahi pūʻolo hoʻohui koi, e nānā i kahi pahu pahu māhoe māhoe like - ʻoi aku ka ʻano hoʻololi kūʻē no nā hoʻouka kalapona kiʻekiʻe loa. ʻAʻole maopopo i ka mea kūpono i kāu laina? ʻO kā mākouhoʻokahi wili, hōʻike ʻia nā pae conical a me nā pae like ma kaʻaoʻao huahana.

Nā noi maʻamau

Ma muli o ka hui pū ʻana i ka hānai ikaika, ka hoʻopiʻi kiʻekiʻe a me ka ʻāʻī mālie, ʻo ka conical twin screw a me ka barela ka mea hana o ka paʻa-PVC a me ka extrusion lāʻau-plastic. Hana maikaʻi loa ia no:

Paipu PVC- hoʻolako wai, hoʻoheheʻe a me ka paipu auwai mai ka PVC hui maloʻo.
Hōʻike PVC- nā ʻaoʻao puka makani a me ka puka, ka hoʻopaʻa ʻana a me ka ʻoki.
PVC papa & pepa- ka papa puaa, ka pepa kiʻi marble a me ka papa puaʻa manuahi (e ʻike i kā mākouʻO ka pahu PVC pahu pahu māhoe conical).
WPC- ka decking, nā pā pā a me nā kiʻi mai nā pūhui i hoʻopiha ʻia i ka lāʻau.
Nā huahana PE a me ka resin-tile- me ka corrugated resin roofing tile a me PE-filled profiles.
PVC pelletizing- ka hoʻololi ʻana i ka PVC maloʻo i loko o nā granule no ka hoʻohana ʻana i lalo.

PVC board conical twin screw barrel for foam and marble sheet extrusion — ʻO ka pahu pahu māhoe conical i hoʻonohonoho ʻia no ka papa PVC a me ka extrusion-pepa.

Pehea e koho ai i ka pahu pahu māhoe conical pono

Aia ke koho i ʻekolu mau nīnau: he aha nā mea āu e holo nei, he aha kāu mea e pono ai, a pehea ka abrasive o kāu hana? E hoʻohana i ka matrix ma lalo nei i wahi hoʻomaka, a laila e hōʻoia i ka nui pololei i kāu mīkini.

ʻO kāu mea / pono	Manaʻo hoʻonohonoho	Ili / mea koho
Paipu PVC paʻa a me ka ʻike	Hoʻohālikelike ʻia nā geometry conical maʻamau i kāu extruder (e.g. 55/110, 65/132)	Nitrided 38CrMoAlA no ka maʻemaʻe, haʻahaʻa-hoʻopiha PVC
PVC + kiʻekiʻe CaCO₃ hoʻopiha	Conical me ka hoʻoikaika ʻana i ka ʻaʻahu, a i ʻole e piʻi i luna i ka hoʻohuli ʻana like	Papa bimetallic / tungsten-carbide (62 HRC) no ka abrasion
WPC / pūhui lāʻau	Conical me ka puka makani ikaika a me ka pale lole	ʻO ka Bimetallic - ʻo ka pulupulu lāʻau + nā mea hoʻopihapiha he mea ʻeha loa
ʻO ka papa pahu pahu PVC / pepa	Hoʻokani ʻia ʻo Conical no ka mālama ʻana i ka wela heheʻe a me ka paʻa paʻa	Nitrided a bimetallic e pili ana i ka pae hoʻopihapiha
Huakaʻi kiʻekiʻe ma ka wāwae hoʻokahi	ʻOi aku ka nui o ka lākiō anawaena a/a i ʻole ka lōʻihi kūpono	Hoʻohālikelike i ka paʻakikī e holo i nā hola a me ka ukana hoʻopiha

ʻO kēlā me kēia pane, ʻo ka pae koʻikoʻi hoʻokahi e hoʻohālikelike i ka pahu i kāu mīkini e kū nei. Maʻa maʻamau nā ʻāpana conical i ka extruder a lākou e holo ai, no laila he kiʻi - a i ʻole kahi laʻana me nā ana kī (feed/die diameter, mamao waena, lōʻihi holoʻokoʻa a me nā kikoʻī flange) - e ʻae iā mākou e haʻi i kahi mea kūpono kūpono ma mua o kahi ʻāpana "kokoke". Inā makemake ʻoe i ka laina holoʻokoʻa ma mua o ka ʻāpana, kūkulu pū mākounā mīkini extruder piha.

Hoʻokomo a me nā kumu wili

Hoʻokō wale ka pahu kikoʻī inā hoʻokomo ʻia i ka huinaha, maʻemaʻe a me ka wela pono. ʻO nā ʻanuʻu ma lalo nei he hiʻohiʻona maʻamau - e hahai mau i nā kaʻina hana a ka mea hana mīkini a me ka laka.

E hoʻohaʻahaʻa a paʻa i waho.E hoʻokaʻawale i ke kaʻa a me nā mea wela a pau ma mua o ka wehe ʻana i ka pahu kahiko. E hōʻoia i ka ikehu zero ma mua o kou hoʻomaka.
E hoʻomaʻemaʻe i nā maka male.Wehe i ka sealant kahiko, carbon a burrs mai nā flanges a huli i nā maka i noho ai nā noho barela hou me ka ʻole o ka ʻino.
E kau a hooponopono.E hoʻopili i ka pahu conical i ka pahu pahu / hale hānai, e nānā i ka concentricity a e huli manuahi nā wili ma ka lima ma mua o ka hoʻohana ʻana i ka mana.
Uea i na wahi wela.Hoʻohui hou i nā mea hoʻomehana band a me ka hoʻoluʻu ma kēlā me kēia wahi (feed → compression → metering), a hoʻopaʻa i kēlā me kēia thermocouple i ke kahawai hoʻoponopono pololei i ʻole kahi ʻāpana i hoʻopaʻa ʻia.
E hoʻopaʻa i kahi ʻaoʻao soak.E hoʻonui mālie i ka pahu i ka wela a e hoʻoheheʻe i ke kila a hoʻoheheʻe ʻia ma mua o ka hoʻomaka ʻana i nā wili - e hoʻomaka ana i ka pōʻino o ke anuanu.

ʻĀpana wahi wela:e mālama i ka maʻalili o ka wahi hānai a piʻi i ka mahana i luna i ka make. ʻO nā ʻāpana like ʻole a i ʻole i kuhi ʻia ʻo ia kekahi o nā kumu maʻamau o ka piʻi ʻana a me ka ʻeleʻele - pono e nānā pālua ʻia ma hope o ka hoʻololi ʻana o ka pahu.

Hoʻoponopono pilikia a ʻaʻahu

ʻO ka hapa nui o nā pilikia barrel conical e hoʻolaha iā lākou iho he huahana paʻa ʻole, wela wela a i ʻole nā huahana hoʻohaʻahaʻa. E hoʻohana i kēia pākaukau e neʻe koke mai ka hōʻailona a hiki i ke kumu e hoʻoponopono ai.

hōʻailona	Ke kumu paha	Hoʻoponopono
Hoʻololi a piʻi ka puka	Hānai ʻole like ʻole, lele ʻino, a i ʻole ka wela wela	E nānā i ka meaʻai, e hōʻoia i ka mahana o ka ʻāpana, e ana i ka hoʻomaʻemaʻe ʻana i ka pōloli/barela
Ka wela nui	ʻAʻole kaulike ʻana o ka mea hoʻomehana, ʻoi aku ka paʻakikī, a i ʻole ka hoʻoluʻu ʻana	E nānā i kēlā me kēia wahi a me ke kaapuni hoʻoluʻu; palapala ʻāina hou i nā thermocouple
ʻAʻole maikaʻi ka plasticizing	Ua hewa ka hoʻonohonoho ʻana i ka wili a i ʻole kahi pahu pahu ʻeleʻele	E hōʻoia i ka hoʻonohonoho; e nānā no ka hoʻonui ʻia ʻana mai ka ʻaʻahu
Nā laina ʻeleʻele / kaha	ʻO nā kiko make e paʻa ana i nā mea i hoʻohaʻahaʻa ʻia, a i ʻole nā waiu ʻai	E hoʻomaʻemaʻe a hoʻomaʻemaʻe loa; e nānā i ka lua a me ka ʻili wili
ʻAʻahu nui / wikiwiki	ʻO ka mea hoʻopihapiha abrasive, mālama maikaʻi ʻole, a i ʻole ka paʻakikī ma lalo o ka kikoʻī	Hoʻonui i kahi pahu bimetallic / tungsten-carbide; hoʻopaʻa mālama

He mea maʻamau ka ʻaʻahu - ʻo ka pahuhopu e lohi a hiki ke wānana. ʻO nā mea hoʻopihapiha hoʻopihapiha (CaCO₃, fiber lāʻau, aniani) e hoʻouka wikiwiki i ka lua a me nā mokulele, ʻo ia ke kumu e uku ai ka papa o loko o loko. ʻOi aku ka lōʻihi o ka 62 HRC tungsten i hoʻohui ʻia i kēlā mau pūhui ma mua o ka hoʻopau maʻamau 58 HRC, e hoʻolōʻihi ana i ka wā ma waena o ke kūkulu hou ʻana.

Papa helu mālama

ʻO nā mākaʻikaʻi pōkole maʻamau e pale i nā hāʻule pipiʻi. E hana i kēia mau mea i kāu hana maʻamau:

Kūwaena	Nānā	Hana
ʻO kēlā me kēia hoʻololi	Nā wela a me nā amp	Heluhelu moolelo; e noiʻi i ka neʻe ʻana mai ka papa kuhikuhi
ʻO kēlā me kēia pule	ʻO ka maikaʻi hehee a me ka pau ʻana o ka ʻili	E nānā no nā kaha hou, nā gels a i ʻole ka hoʻololi ʻana
ʻO kēlā me kēia mahina	Hoʻomaʻemaʻe a me ka nānā ʻana i ka lua/screw check	Hoʻomaʻemaʻe i nā wahi make; e ʻimi i ka helu ʻana a i ʻole ka ʻulaʻula
ʻEkahi hapahā	Hoʻomaʻemaʻe i ka pōkole/barela	E ana i ka hakahaka; e hoʻohālikelike i ka kikoʻī e nānā i ka helu ʻaʻahu
E like me ka mea e pono ai	Heater & thermocouple pono	E hoʻololi i nā pūnaʻi i hāʻule ʻole ma mua o ka hana ʻana i ka huahana maikaʻi ʻole

Nīnau pinepine

He aha ka pahu pahu māhoe conical?

He ʻāpana hoʻoheheʻe māhoe māhoe i hoʻopaʻa ʻia i loko o kahi pahu conical like ʻole. Hoʻopiʻi ka taper a hoʻopaʻa i nā mea i kahi lōʻihi pōkole, e hana ana i ka pahu conical screw i kūpono no ka paipu PVC, profile, sheet a me WPC extrusion.

He aha nā mea i hoʻohana maikaʻi ʻia?

ʻO PVC ʻoʻoleʻa (pipe, profile, papa a me ka lau), ka lāʻau-plastic composite, PE-based profiles a me ka resin tile, me ka pelletizing PVC. Mālama ʻo ia i nā pauka maloʻo maloʻo haʻahaʻa haʻahaʻa haʻahaʻa i hoʻomaikaʻi maikaʻi ʻia i kāna ʻai nui.

Pehea ka ʻokoʻa me ka pahu māhoe māhoe like?

Hoʻopili ʻia kahi pahu conical a kūkulu i ka hoʻoemi kiʻekiʻe me ka ʻāʻī mālie, kūpono i ka extrusion PVC/WPC pololei. Abarela māhoe māhoe likemālama i ke anawaena mau a me ka ʻoki kiʻekiʻe, e kūpono i ka hui ʻana, masterbatch a me nā hoʻopihapiha hoʻopihapiha kiʻekiʻe loa.

He aha ka ʻokoʻa maʻamau ma waena o ka screw a me ka barela?

ʻO ka hoʻomaʻemaʻe ka liʻiliʻi liʻiliʻi ma waena o ka piko lele a me ka paia hū. Hoʻonohonoho paʻa a pololei ma kahi ʻāpana hou; e like me ka wehe ʻana mai ka ʻaʻahu, ka hoʻopuka a me ka hāʻule kaomi. ʻO ke ana ʻana i kēlā me kēia manawa ʻo ia ke ala ʻoi loa e nānā i ka ʻaʻahu o ka barela.

Pehea wau e hoʻouka ai i kahi pahu pahu māhoe conical?

E hoʻohaʻahaʻa i lalo a laka i waho, e hoʻomaʻemaʻe i nā ʻaoʻao pili, e kau a hoʻopaʻa i ka huli ʻana o nā wili, e uea pololei i kēlā me kēia wahi wela a me ka thermocouple, a laila e hoʻonui mālie i ka pahu i ka wela a hoʻoinu ma mua o ka hoʻomaka ʻana i nā wili.

He aha ke kumu e komo ai i loko o nā pahu pahu māhoe conical?

ʻO nā mea hoʻopihapiha nui e like me ka calcium carbonate, ka lāʻau a me ke aniani, i hōʻino ʻia e ka corrosion mai ka hana PVC, mālama maikaʻi ʻole a me ka paʻakikī i hōʻike ʻia. ʻO kahi papa bimetallic hohonu a i ʻole tungsten-carbide ʻoi aku ka maikaʻi o nā mea ʻekolu.

ʻEhia mau manawa e nānā ʻia a hoʻololi ʻia paha ka pahu?

Hana i ka nānā ʻana a me ka hoʻomaʻemaʻe i kēlā me kēia mahina a ana i ka ʻae ʻana i kēlā me kēia hapaha. ʻO ka manawa hoʻololi e pili ana i ka hoʻopiha piha a me nā hola holo - e hahai i ke ʻano o ka ʻaʻahu ma mua o ke kali ʻana no ka hāʻule ʻole, a kūkulu hou a hoʻololi paha i ka wā e neʻe ai ka ʻae ʻana i nā kikoʻī.

Pehea wau e koho ai i ka nui kūpono no kaʻu laina extrusion?

E hoʻohālikelike i ka ratio anawaena a me ka lōʻihi i kāu kumu hoʻohālike extruder a me ka hoʻopuka ʻana, a laila e koho i kahi lapaʻau ʻili e pili ana i ke ʻano abrasive o kāu hana. E hoʻouna i kahi kiʻi kiʻi a i ʻole kekahi laʻana me nā ana kī no laila ua kūpono ka pahu, ʻaʻole i kahi kokoke.

Makemake ʻoe i kahi pahu pahu māhoe conical i kūpono i kāu mīkini?

E hoʻouna mai iā mākou i kāu kiʻi - a i ʻole kahi laʻana me nā ʻāpana kī - a e ʻike kā mākou poʻe ʻenekinia i kahi māhoe māhoe conical kūpono a me ka pahu me ka paʻakikī kūpono no kāu mea. Me ka hana nitriding, bimetallic a me tungsten-carbide i loko o ka hale, kūkulu mākou i nā ʻāpana i hiki i 62 HRC i loko o ka lua no ka lōʻihi o ke ola lawelawe.

E kiʻi i kahi ʻōlelo i loko o 12 hola →
